[MODEL LS-22T,LS-30T, LS-37T]
● Every machines was tested by pressure for 5 minutes before shipment
● Avoiding the oil leakage, the raw material of Oil Seal were imported from USA
● Wheel is the standard of DOT(United States Department of Transportation)
● Max. Speed was improved to 50KM/Hour(instead of 30KM/Hour)
● Preassembled cross wedge, so the tree is divided into 4 pieces in one operation. Ability to dismantle the horizontal wedges so that the wood only cleaved into 2 pieces.

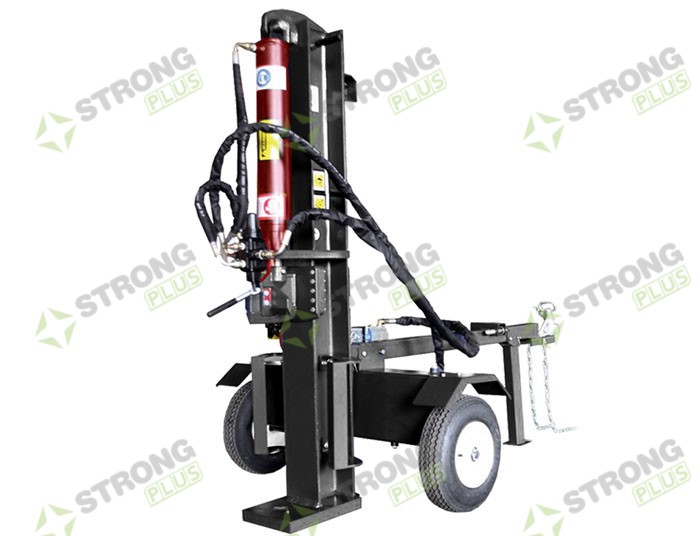

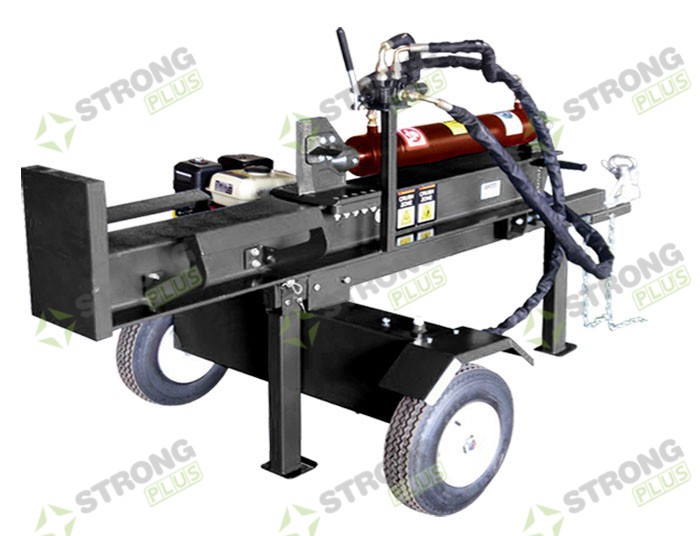

PRODUCT Petrol Engine driven Log Splitter (Horizontal/Vertical)
MODEL LS-22T LS-30T LS-37T
ENGINE LONCIN (4 STROKE)
POWER 6.5HP 9HP 13HP
MAX. SPLIT FORCE 22T 30T 37T
PUMP POWER 11GMP 11GMP 16GMP
MAX. SPLIT SIZE 620(L)*500(D)mm
OIL CYLINDER DIAMETER 4" 4.5" 5"
HYDRAULIC OIL 27L
CYCLE TIME 16s
4 WAY WEDGE INCLUDED
MAX. SPEED 50KM/HOUR
WHEEL SIZE 20"(D)*127(W)MM - dot model
N.W./G.W. 220/235KGS 235/245KGS 250/265KGS
PACKING SIZE 1750*540*560MM
UNITS 48PCS/20'FCL, 96PCS/40'FCL
